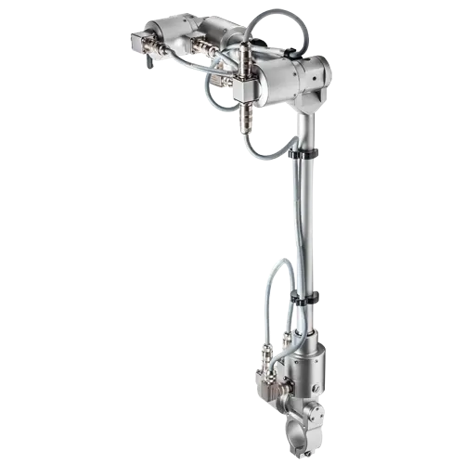

RV4 Wheel vector seonsor (Kistler)

측정장비

• Wheel Vector Sensor for Vehicle
• Wheel Vector measuring ranges X,Y axis: ±150mm, Z-axis: ±200 mm
• Measuring Toe, Camber, Caster angle

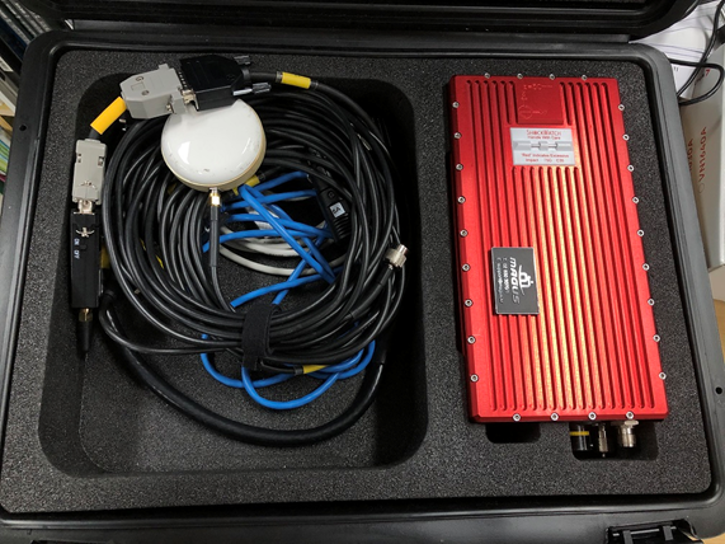

RT3002 V2 (OxTS)

측정장비

• High Precision GPS/INS System
• X,Y,Z Acceleration : 100m/s^2
• X,Y,Z Angular rate : 100º/sec
• Speed Accuracy : 0.1km/h
• Local Position Accuracy : 0.01m(RTK with DGPS)
• Angular Accuracy : 0.05º(roll, pitch), 0.2º(heading)

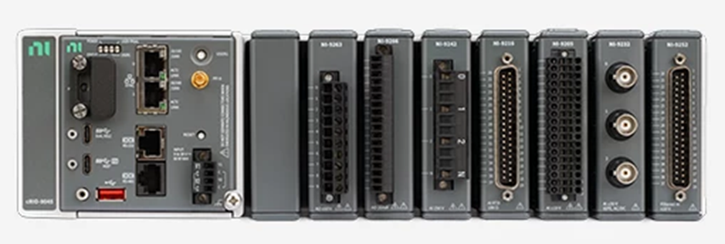

Compacrio (NI)

측정장비

• Real time RT Platform
• Small Vibration and Acoustic Measurements
• Electromechanical Components Test System
• High channel count, distributed system

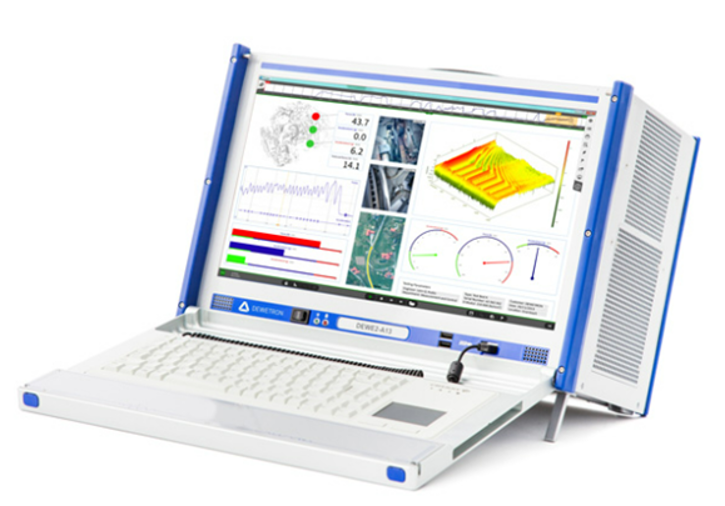

Dewe A13 (Dewetron)

측정장비

• High Speed Data Acquisition System with Monitor
• 32x Analog ports , 8x CAN and 8x Digital ports

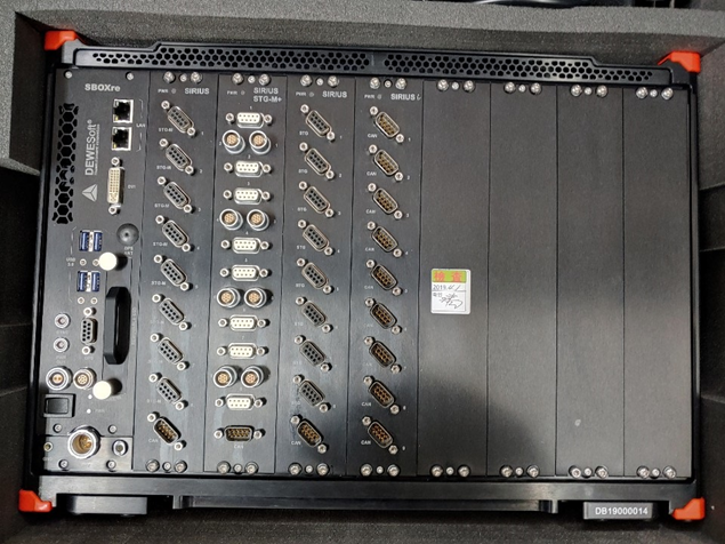

Dewe R8 (Dewetron)

분석장비

• High Speed Data Acquisition System
• 32x Analog ports , 8x CAN and 8x Digital ports
• Mil STD

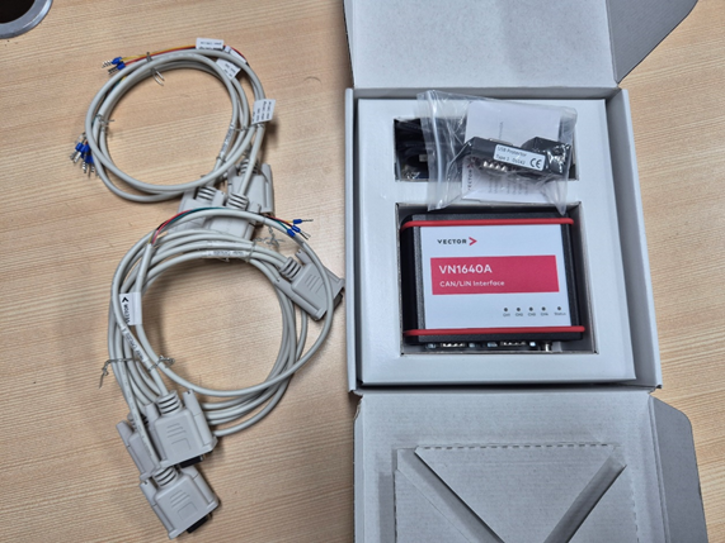

CANOE (Vector)

측정장비

• FPGA Based CAN Signal Test Equipment
• Can I/O : 4ch(CAN-FD)
• D-SUB9 socket

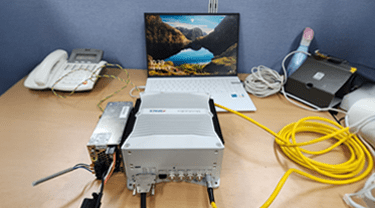

MicroAutobox 3 (dSPACE)

분석장비

• Control Algorithm Validation Tool
• Sample rate: Analog In9-200kS/s
• Analog in17-333kS/s
•  Analog in8-Max 1MS/s Power consumption: 100W
• Resolution: 16bits

CarMaker (IPG Automotve)

분석장비

• Rapid virtual prototyping
• Realistic 3D visualization
• Flexible scalability
• Data analysis and evaluation
